Direct Galvanized Heat Preservation Nail with Plastic Washer and 60 Steel Material

Place of Origin : China

Brand Name : ODM

Model Number : Insulation Nail

Type : Insulation nail

Material : Plastic+Iron, #60 steel

Head Diameter : 7.6mm

Standard : ISO

Product name : Wholesale factory direct Heat Preservation Nail

Surface treatment : Galvanized

Color : White

Application : Building Construction

Package : box, bag, carton,pallet

Packaging Details : box, bag, carton,pallet

Port : Shanghai

Supply Ability : 1000000 Piece/Pieces per Month Wholesale factory direct Heat Preservation Nail

MOQ : 10000 pieces

Price : $0.30/pieces 10000-49999 pieces

Contact Now

Production Description

Material	HDPE
Color	White,grey,green, blue, red, etc
Washer diameter	50mm,60mm
Length	30mm~200mm
Nails Length	42mm,52mm, 62mm or as you need
Nails Diameter	3.7mm, 4.0mm
Application	Widely used for slab heating, enhence the wall of constrction, and for sound insulation
Customized	Support customization

Direct Galvanized Heat Preservation Nail with Plastic Washer and 60 Steel Material

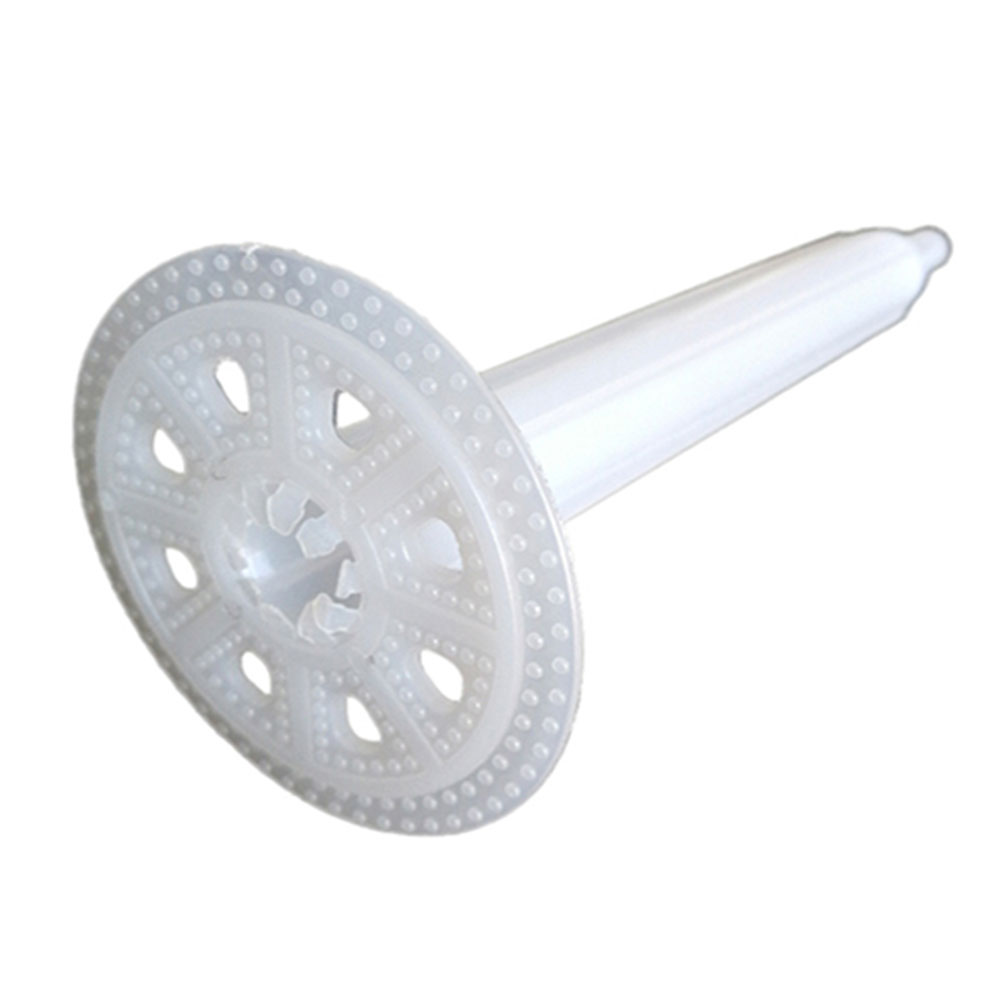

Insulation nails with plastic washer

Insulation fasteners for fixing mineral wool and EPS boards on soft to tough concrete, masonry and steel

Application: Insulation behind curtain walls, Insulation in ceilings, Basement/foundation moisture barrier

Insulation material: Mineral wool, Soft board (e.g. EPS)

Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)

Specification

Insulation Plastic Length	Steel Nail Size	Color	Packing (PC/CTN)
30mm	3.7*42mm	White / Black/Grey	1000
40mm	3.7*42mm	White / Black/Grey	1000
50mm	3.7/4.0*52/62mm	White / Black/Grey	1000
60mm	3.7/4.0*52/62mm	White / Black/Grey	1000
70mm	3.7/4.0*52/62mm	White / Black/Grey	1000
80mm	3.7/4.0*52/62mm	White / Black/Grey	1000
90mm	3.7/4.0*52/62mm	White / Black/Grey	1000
100mm	3.7/4.0*52/62mm	White / Black/Grey	1000
110mm	3.7/4.0*52/62mm	White / Black/Grey	500
120mm	3.7/4.0*52/62mm	White / Black/Grey	500
130mm	3.7/4.0*52/62mm	White / Black/Grey	500
140mm	3.7/4.0*52/62mm	White / Black/Grey	500
150mm	3.7/4.0*52/62mm	White / Black/Grey	500
160mm	3.7/4.0*52/62mm	White / Black/Grey	500
170mm	3.7/4.0*52/62mm	White / Black/Grey	500
180mm	3.7/4.0*52/62mm	White / Black/Grey	500
190mm	3.7/4.0*52/62mm	White / Black/Grey	500
200mm	3.7/4.0*52/62mm	White / Black/Grey	500

Details Images

Quality Raw Materials

Using high-quality HDPE material + galvanized steel screws as raw materials, it is guaranteed to be a new environmentally friendly
material used for the first time, high-quality and durable, and more assured to use.

Strong And Durable

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Energy Efficient

Galvanized steel nails solve the corrosion problem very well, have good durability, good heat transfer performance of the raw
material package, no cold bridge in winter, high efficiency and energy saving.

Various Specifications

Various specifications and complete varieties to meet your various customized needs.

Product Testing

The design of the surface of the disk has different effects; The quality of the plastic disk surface and the length and wire diameter of the inner thimble of the insulation nail will be tested. Finally, including the gun effect test will be strictly processed, as well as the number of nails that the matching nail gun can achieve and the hardness of the cement wall in the penetration test.

Packing and Delivery

Below 100 mm: 100 pieces/bag, 1000 pieces/carton;
Greater than 100 mm and less than 200 mm, 100 pieces/bag, 500 pieces/carton

Construction concrete wall heat insulation nails gas pins : bag or 50 pcs/bag. 1000 pcs/carton or 500 pcs/carton.

Our Factory

Chongqing Liyufujie Trading Co,LTD

Established in 2013, Liyufujie professionally supply power actuated guns, gas nail guns and their accessories ( nails, powder loads, fuel cells) worldwide. A team of engineers engaged in this field for 8-25 years. A team of sales have good knowledge of products and high level of foreign language to give you good service. We exported our products to more than 20 countries.In China,

we have more than 20 shops in the big construction market, all of the below listed items are on sale.

FAQ

Q1: Where are your Factory?

A: We are located in Chongqing,China.

Q2: Are you trading company or manufacturer ?
A: We are a professional fastener manufacturer.

Q3:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What payment terms do you accept ?
A: At least 30% TT deposite,the remain balance paid before loading in our factory.

Q5: What's your MOQ? And how does your delivery?
A: MOQ is 10,000pcs in usual. But if your order cannot reach this limit,also want to purchase our products. Don't worry, We also accept sample orders, if the producing is not too tight.

Q6:What’s your Delivery Time?
A: Generally it is 5-15 days，we have 10-lines production machine who is producing insulation fastener. And about 40,000 pieces production can be produced for a machine-line per day. So we can guarantee the delivery time very fast.

Q7:Can you produce according to customers' design?
A:Sure, we are professional manufacturer, OEM and ODM are both welcome. We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
